Tempat asal:
Cina
Nama merek:
Giant Precision
Sertifikasi:
ISO9001
Nomor model:
Seri RE
 |

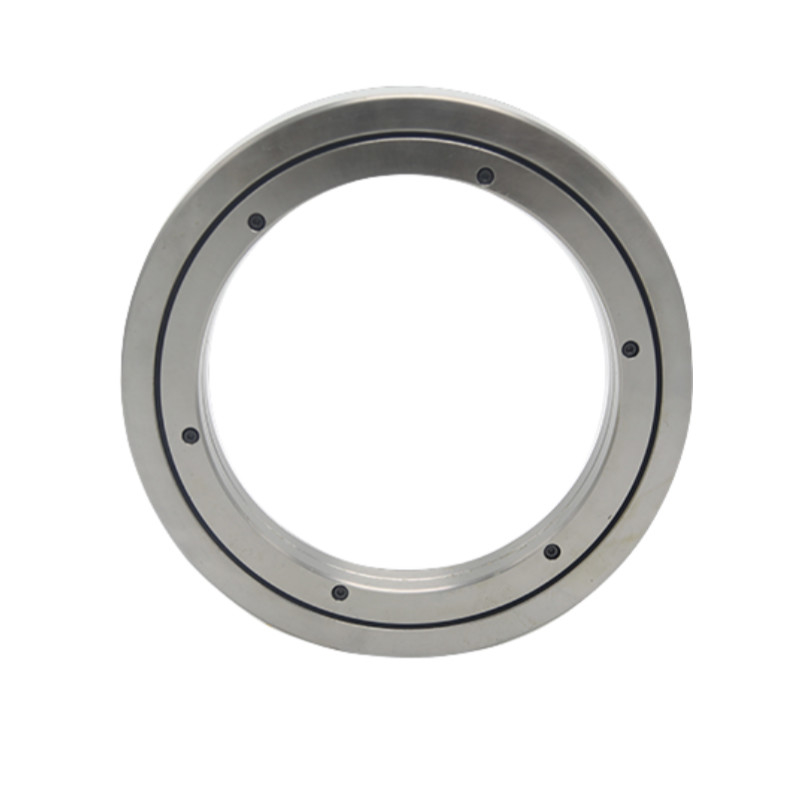

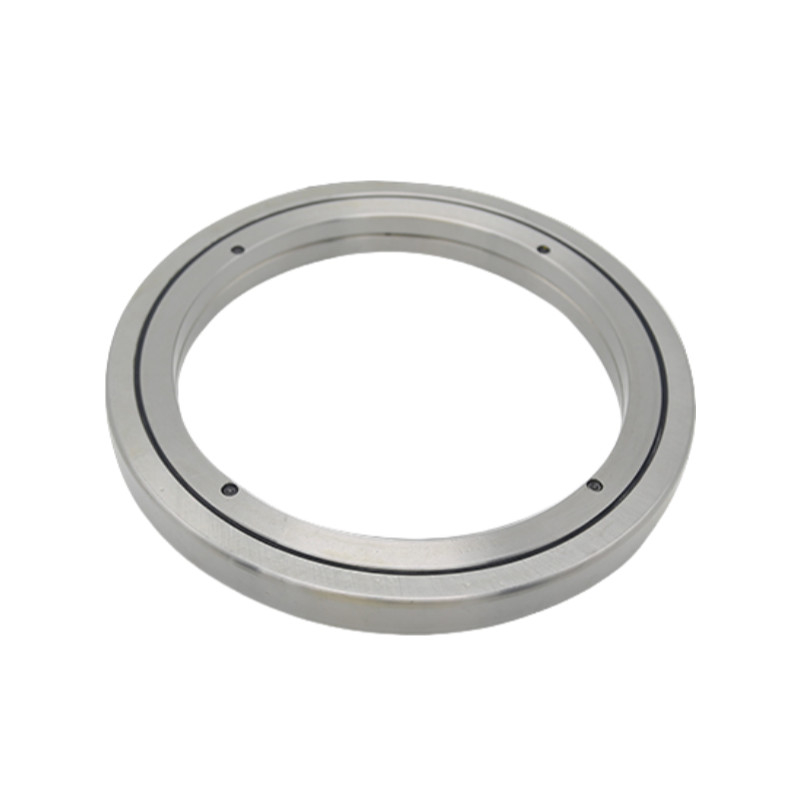

Seri RE (ring bagian dalam jenis split dengan ring luar berputar), yang juga jenis dasar dari roller bearing silang. Ukuran sama dengan seri RB. Cincin bagian dalam dibagi menjadi dua,dan cincin luar adalah seluruhJenis ini sangat cocok untuk situasi di mana akurasi rotasi yang tinggi diperlukan pada cincin luar. |
Fitur
1Keakuratan tinggi: Keakuratan P4, Keakuratan P2
2. Kekakuan tinggi: ini seri bantalan memiliki preload
3. beban tinggi:Seri bantalan ini dapat menahan beban aksial dua arah, beban radial dan momentus miring
4. Ukuran kecil: seri bantalan ini dapat menghemat ruang untuk alat mesin
Spesifikasi
| Model | Dimensi utama | Dimensi bahu | Rating beban dasar (arah radial) | Massa | ||||||
| Cincin dalam | Cincin luar | Diameter peluncuran rol | Ketinggian | Chamfer | Cr | Kor | ||||
| d | D | Dpw | B B1 | rmin | ds | Dh | kN | kN | kg | |
| RE2008 | 20 | 36 | 29 | 8 | 0.5 | 23.5 | 30.5 | 3.23 | 3.1 | 0.04 |
| RE2508 | 25 | 41 | 34 | 8 | 0.5 | 28.5 | 35.5 | 3.63 | 3.83 | 0.05 |
| RE3010 | 30 | 55 | 43.5 | 10 | 0.6 | 37 | 47 | 7.35 | 8.36 | 0.12 |
| RE3510 | 35 | 60 | 48.5 | 10 | 0.6 | 41 | 51.5 | 7.64 | 9.12 | 0.13 |
| RE4010 | 40 | 65 | 53.5 | 10 | 0.6 | 47.5 | 58 | 8.33 | 10.6 | 0.16 |
| RE4510 | 45 | 70 | 58.5 | 10 | 0.6 | 51 | 61.5 | 8.62 | 11.3 | 0.17 |
| RE5013 | 50 | 80 | 66 | 13 | 0.6 | 57.5 | 72 | 16.7 | 20.9 | 0.27 |
| RE6013 | 60 | 90 | 76 | 13 | 0.6 | 68 | 82 | 18 | 24.3 | 0.3 |
| RE7013 | 70 | 100 | 86 | 13 | 0.6 | 78 | 92 | 19.4 | 27.7 | 0.35 |
| RE8016 | 80 | 120 | 101.4 | 16 | 0.6 | 91 | 111 | 30.1 | 42.1 | 0.7 |
| RE9016 | 90 | 130 | 112 | 16 | 1 | 98 | 118 | 31.4 | 45.3 | 0.75 |
| RE10016 | 100 | 140 | 121.1 | 16 | 1 | 109 | 129 | 31.7 | 48.6 | 0.83 |
| RE10020 | 150 | 127 | 20 | 1 | 113 | 133 | 33.1 | 50.9 | 1.45 | |
| RE11012 | 110 | 135 | 123.3 | 12 | 0.6 | 117 | 127 | 12.5 | 24.1 | 0.4 |
| RE11015 | 145 | 129 | 15 | 0.6 | 122 | 136 | 23.7 | 41.5 | 0.75 | |
| RE11020 | 160 | 137 | 20 | 1 | 120 | 140 | 34 | 54 | 1.56 | |
| RE12016 | 120 | 150 | 136 | 16 | 0.6 | 127 | 141 | 12.2 | 43.2 | 0.72 |
| RE12025 | 180 | 152 | 25 | 1.5 | 133 | 164 | 66.9 | 100 | 2.62 | |
| RE13015 | 130 | 160 | 146 | 15 | 0.6 | 137 | 152 | 25 | 46.7 | 0.72 |
| RE13025 | 190 | 162 | 25 | 1.5 | 143 | 174 | 69.5 | 107 | 2.82 | |
| RE14016 | 140 | 175 | 160 | 16 | 1 | 147 | 162 | 25.9 | 50.1 | 1 |
| RE14025 | 200 | 172 | 25 | 1.5 | 154 | 185 | 74.8 | 121 | 2.96 | |
| RE15013 | 150 | 180 | 166 | 13 | 0.6 | 158 | 172 | 27 | 53.5 | 0.68 |
| RE15025 | 210 | 182 | 25 | 1.5 | 164 | 194 | 76.8 | 128 | 3.16 | |
| RE15030 | 230 | 192 | 30 | 1.5 | 173 | 210 | 100 | 156 | 5.3 | |
| RE16025 | 160 | 220 | 192 | 25 | 1.5 | 173 | 204 | 81.7 | 135 | 3.14 |
| RE17020 | 170 | 220 | 196.1 | 20 | 1.5 | 184 | 198 | 29 | 62.1 | 2.21 |
| RE18025 | 180 | 240 | 210 | 25 | 1.5 | 195 | 225 | 84 | 143 | 3.44 |
| RE19025 | 190 | 240 | 219 | 25 | 1 | 202 | 222 | 41.7 | 82.9 | 2.99 |
| RE20025 | 200 | 260 | 230 | 25 | 2 | 215 | 245 | 84.2 | 157 | 4 |
| RE20030 | 280 | 240 | 30 | 2 | 221 | 258 | 114 | 200 | 6.7 | |
| RE20035 | 295 | 247.7 | 35 | 2 | 225 | 270 | 151 | 252 | 9.6 | |
| RE22025 | 220 | 280 | 250.1 | 25 | 2 | 2235 | 265 | 92.3 | 171 | 4.1 |
| RE24025 | 240 | 300 | 272.5 | 25 | 2.5 | 256 | 281 | 68.3 | 145 | 4.5 |
| RE25025 | 250 | 310 | 280.9 | 25 | 2.5 | 268 | 293 | 69.3 | 150 | 5 |
| RE25030 | 330 | 287.5 | 30 | 2.5 | 269 | 306 | 126 | 244 | 8.1 | |
| RE25040 | 355 | 300.7 | 40 | 2.5 | 275 | 326 | 195 | 348 | 14.8 | |
| RE30025 | 300 | 360 | 332 | 25 | 2.5 | 319 | 344 | 75.5 | 178 | 5.9 |
| RE30035 | 395 | 345 | 35 | 2.5 | 322 | 368 | 183 | 367 | 13.4 | |
| RE30040 | 405 | 351.6 | 40 | 2.5 | 326 | 377 | 212 | 409 | 17.2 | |
| RE35020 | 350 | 400 | 376.6 | 20 | 2.5 | 363 | 383 | 54.1 | 143 | 3.9 |
| RE40035 | 400 | 480 | 440.3 | 35 | 2.5 | 422 | 459 | 156 | 370 | 14.5 |
| RE40040 | 510 | 453.4 | 40 | 2.5 | 428 | 479 | 241 | 531 | 23.5 | |
| RE45025 | 450 | 500 | 476.6 | 25 | 1 | 464 | 484 | 61.7 | 182 | 6.6 |
| RE50025 | 500 | 550 | 526.6 | 25 | 1 | 514 | 534 | 65.5 | 201 | 7.3 |
| RE50040 | 600 | 548.8 | 40 | 2.5 | 526 | 572 | 239 | 607 | 26 | |
| RE50050 | 625 | 561.6 | 50 | 2.5 | 536 | 587 | 267 | 653 | 41.7 | |
| RE60040 | 600 | 700 | 650 | 40 | 3 | 627 | 673 | 264 | 721 | 29 |
Aplikasi
|
|
|
|
| Otomatisasi Industri | Peralatan Medis | Perlengkapan udara | Peralatan presisi |
